9-5/8'' 36-53.5#RBP Packer / Bridge Plug Retrievable Packer 10000psi Working Pressure

Minimum Order Quantity :	1 set	Price :	USD 1-10000/set
Packaging Details :	Pollywood	Delivery Time :	30-50 days
Payment Terms :	L/C, T/T, D/P	Supply Ability :	10 set/month

Place of Origin:	China	Brand Name:	ZZ TOP OIL TOOLS
Certification:	ISO, API	Model Number:	9 5/8" Retrievable Bridge Plug

Detail Information
Product:	9 5/8" Retrievable Bridge Plug	Type:	Packer Type RBP
Size:	9 5/8inch	Working Pressure:	10000psi
Application:	Oil Well Downhole Testing Service	Connection:	IF, EUE , CAS
Working Condition:	Oil & Gas & H2S Service	Working Temperature:	Up To 425oF
Highlight:	10000psi Bridge Plug Retrievable Packer , 9-5/8'' Bridge Plug Retrievable Packer , 9-5/8'' 36-53.5 RBP Packer

Product Description

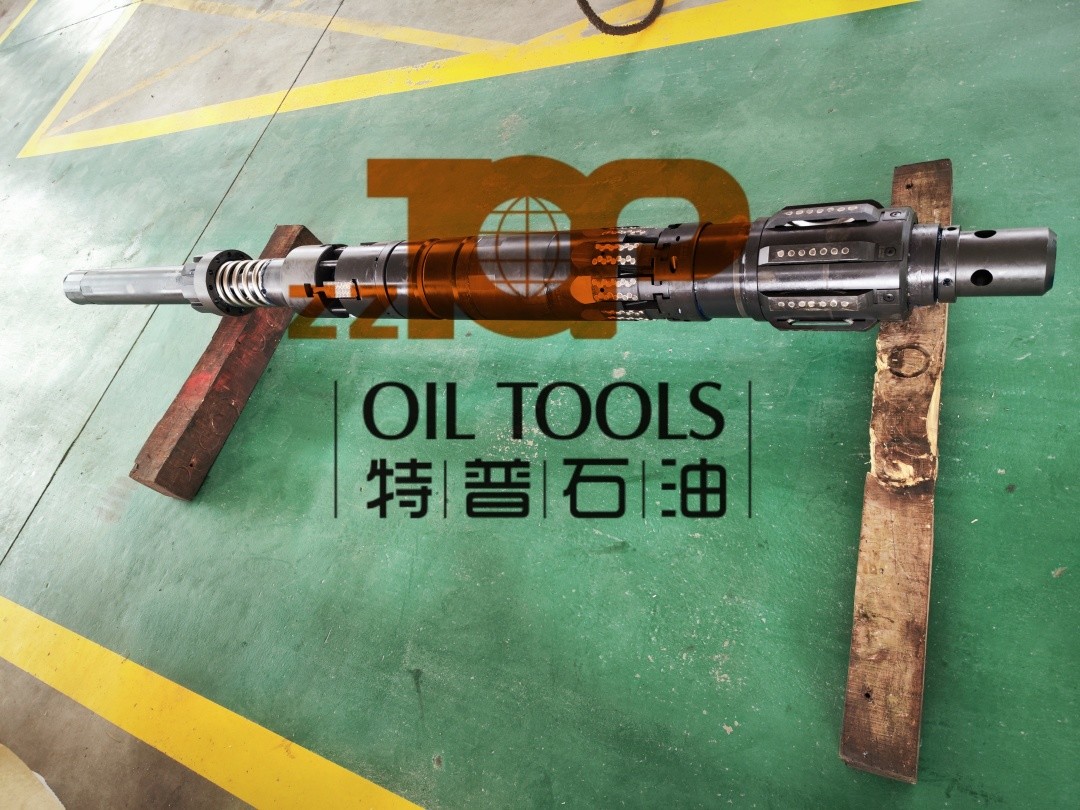

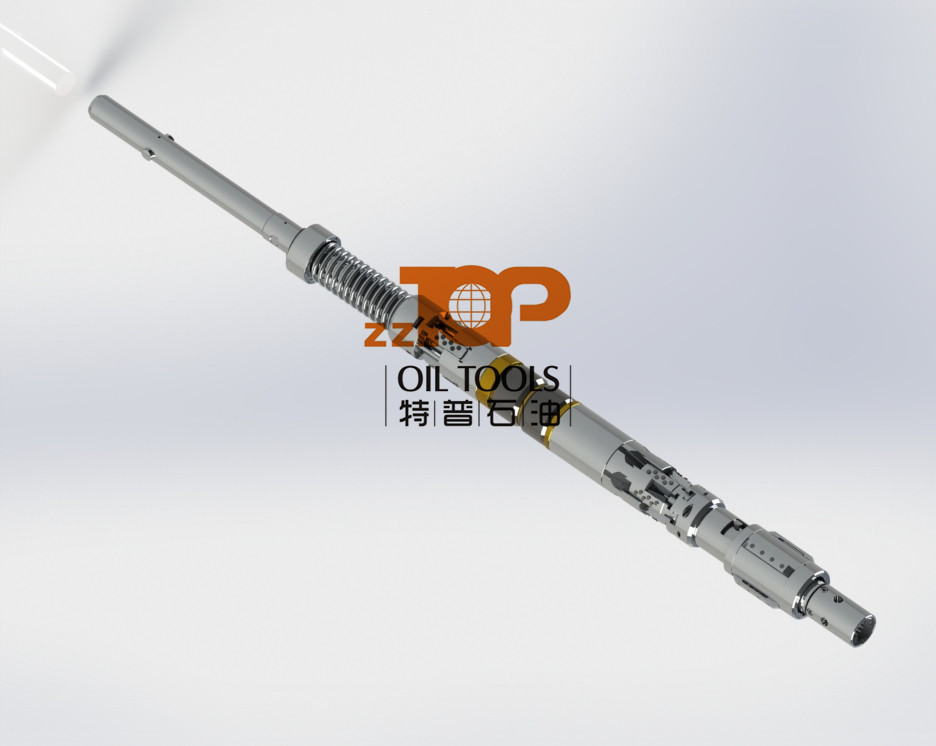

9-5/8"36-53.5#RBP Packer / Bridge Plug Retrievable Packer 10000psi Working Pressure

The Retrievable Bridge Plug(RBP) is a high-pressure packer style bridge plug used for multiple selective zone treating and testing operations.

The RBP consists of packer-type sealing elements, mechanical slips, and a large-area bypass. The sealing elements are less susceptible to damage while running in the hole because they are not in contact with the casing. The 3L RBP is designed to set in tension or compression, which makes it ideal for shallow applications to test wellhead for deep, high-pressure applications.

Specifcation of 9 5/8" Retrievable bridge plug with redress kit

No.	Description	Qty	Unit
1	9-5/8" 36-53.5# RBP Packer,working Pressure 70Mpa(10,000psi,Working Temperature 400F,,H2S as perNACEMR 0175,Thread Connection 3-1/2" EUE on the Running Tool Note:9 5/8” 29.3-43.5# Kit assembled with packer,9 5/8”47-53.5# will be delivered as spare	Ea	1
2	Rubber element Kit,for 95/8”29.3-43.5#RBP,1set=2pcs,Suggested to replaced after each run,FKM,400F	Set	2
3	Rubber element Kit,for 95/8”47-53.5#RBP,1set=2pcs,Suggested to replaced after each run,FKM,400F	Set	2
4	Seal Ring Redress Kt for RBP 95/8”,1set=1run,Need to bereplaced after each run	Set	2

9-5/8'' 36-53.5#RBP Packer / Bridge Plug Retrievable Packer 10000psi Working Pressure 0
